P. 1907

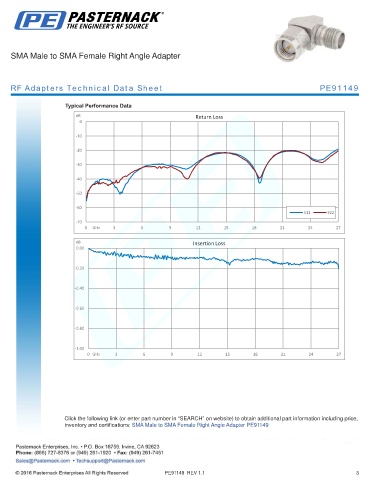

SMA Male to SMA Female Right Angle Adapter
RF Adapters Technical Data Sheet PE91149
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
S11 S22
-70
0 GHz 3 6 9 12 15 18 21 24 27
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0 GHz 3 6 9 12 15 18 21 24 27
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Right Angle Adapter PE91149
PE91149 REV 1.1 3
