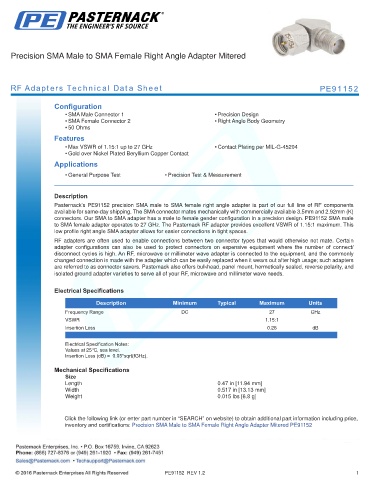

Precision SMA Male to SMA Female Right Angle Adapter Mitered

RF Adapters Technical Data Sheet PE91152

Configuration
• SMA Male Connector 1 • Precision Design
• SMA Female Connector 2 • Right Angle Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.15:1 up to 27 GHz • Contact Plating per MIL-G-45204
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE91152 precision SMA male to SMA female right angle adapter is part of our full line of RF components
available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K)
connectors. Our SMA to SMA adapter has a male to female gender configuration in a precision design. PE91152 SMA male
to SMA female adapter operates to 27 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1 maximum. This
low profile right angle SMA adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 27 GHz
VSWR 1.15:1
Insertion Loss 0.26 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).

Mechanical Specifications
Size
Length 0.47 in [11.94 mm]
Width 0.517 in [13.13 mm]
Weight 0.015 lbs [6.8 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to SMA Female Right Angle Adapter Mitered PE91152

PE91152 REV 1.2 1
