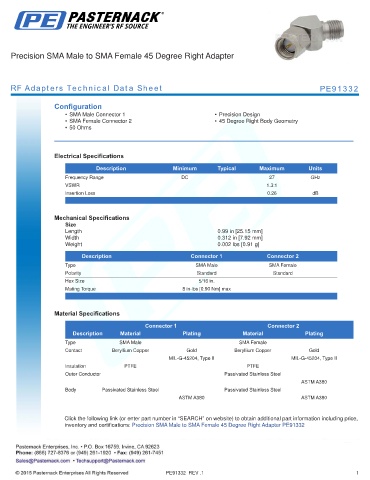

Precision SMA Male to SMA Female 45 Degree Right Adapter

RF Adapters Technical Data Sheet PE91332

Configuration
• SMA Male Connector 1 • Precision Design
• SMA Female Connector 2 • 45 Degree Right Body Geometry
• 50 Ohms
.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 27 GHz
VSWR 1.3:1
Insertion Loss 0.26 dB
. .

Mechanical Specifications
Size
Length 0.99 in [25.15 mm]
Width 0.312 in [7.92 mm]
Weight 0.002 lbs [0.91 g]
.
Description Connector 1 Connector 2
Type SMA Male SMA Female
Polarity Standard Standard
Hex Size 5/16 in.
Mating Torque 8 in-lbs [0.90 Nm] max
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204, Type II MIL-G-45204, Type II
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel
ASTM A380
Body Passivated Stainless Steel Passivated Stainless Steel
ASTM A380 ASTM A380

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to SMA Female 45 Degree Right Adapter PE91332

PE91332 REV .1 1
