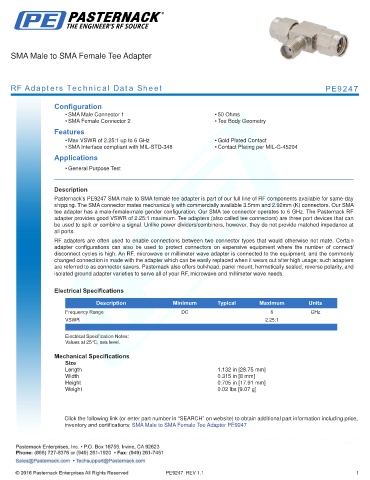

SMA Male to SMA Female Tee Adapter

RF Adapters Technical Data Sheet PE9247

Configuration
• SMA Male Connector 1 • 50 Ohms
• SMA Female Connector 2 • Tee Body Geometry
Features
• Max VSWR of 2.25:1 up to 6 GHz • Gold Plated Contact
• SMA Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• General Purpose Test
.
Description
Pasternack’s PE9247 SMA male to SMA female tee adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
tee adapter has a male-female-male gender configuration. Our SMA tee connector operates to 6 GHz. The Pasternack RF
adapter provides good VSWR of 2.25:1 maximum. Tee adapters (also called tee connectors) are three port devices that can
be used to split or combine a signal. Unlike power dividers/combiners, however, they do not provide matched impedance at
all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 2.25:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.132 in [28.75 mm]
Width 0.315 in [8 mm]
Height 0.705 in [17.91 mm]
Weight 0.02 lbs [9.07 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Tee Adapter PE9247

PE9247 REV 1.1 1
