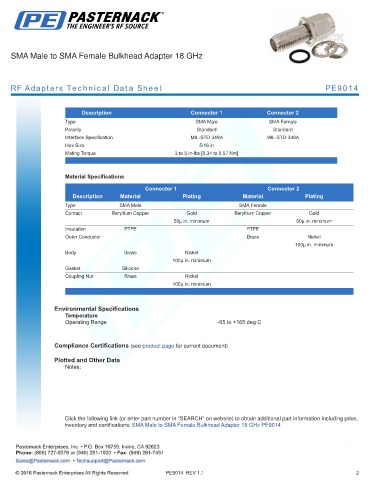

SMA Male to SMA Female Bulkhead Adapter 18 GHz

RF Adapters Technical Data Sheet PE9014

.
Description Connector 1 Connector 2
Type SMA Male SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Hex Size 5/16 in
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
50µ in. minimum 50µ in. minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100µ in. minimum
Body Brass Nickel
100µ in. minimum
Gasket Silicone
Coupling Nut Brass Nickel
100µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Bulkhead Adapter 18 GHz PE9014

PE9014 REV 1.1 2
