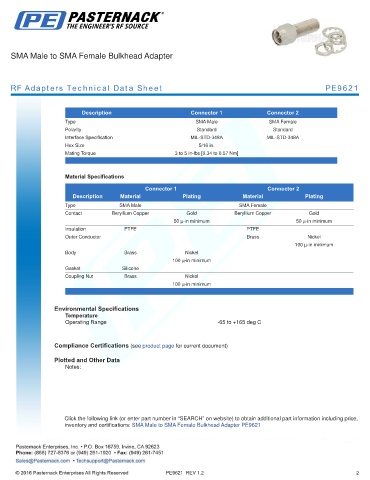

SMA Male to SMA Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE9621

.
Description Connector 1 Connector 2
Type SMA Male SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Hex Size 5/16 in.
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
50 µ-in minimum 50 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100 µ-in minimum
Body Brass Nickel
100 µ-in minimum
Gasket Silicone
Coupling Nut Brass Nickel
100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Bulkhead Adapter PE9621
