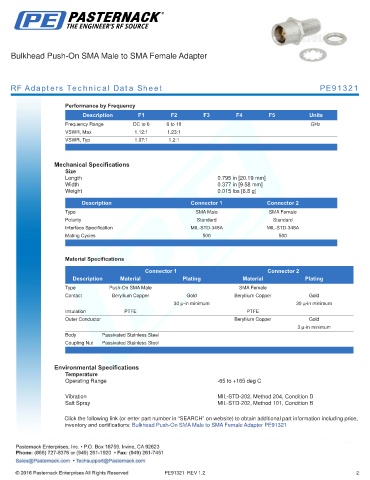

Bulkhead Push-On SMA Male to SMA Female Adapter

RF Adapters Technical Data Sheet PE91321

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 6 6 to 18 GHz
VSWR, Max 1.12:1 1.23:1
VSWR, Typ 1.07:1 1.2:1
.

Mechanical Specifications
Size
Length 0.795 in [20.19 mm]
Width 0.377 in [9.58 mm]
Weight 0.015 lbs [6.8 g]
.
Description Connector 1 Connector 2
Type SMA Male SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type Push-On SMA Male SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Beryllium Copper Gold
3 µ-in minimum
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Vibration MIL-STD-202, Method 204, Condition D
Salt Spray MIL-STD-202, Method 101, Condition B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Push-On SMA Male to SMA Female Adapter PE91321

PE91321 REV 1.2 2
