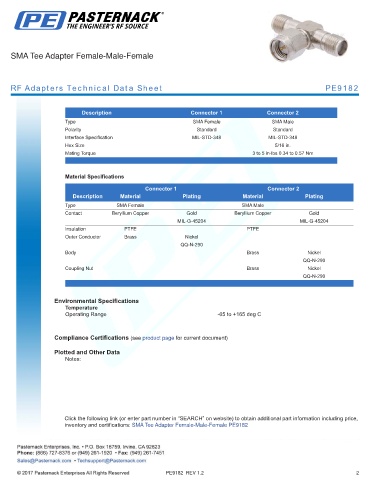

SMA Tee Adapter Female-Male-Female

RF Adapters Technical Data Sheet PE9182

.
Description Connector 1 Connector 2
Type SMA Female SMA Male
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Hex Size 5/16 in.
Mating Torque 3 to 5 in-lbs 0.34 to 0.57 Nm
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SMA Male
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Tee Adapter Female-Male-Female PE9182

PE9182 REV 1.2 2
