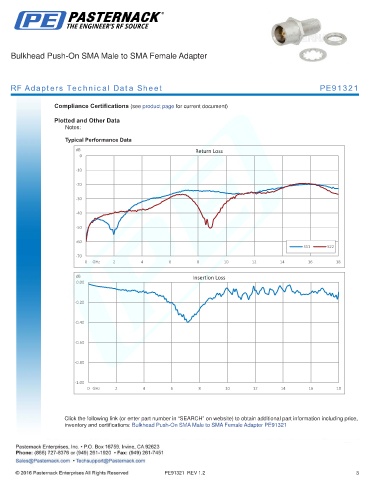

Bulkhead Push-On SMA Male to SMA Female Adapter
RF Adapters Technical Data Sheet PE91321
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
S11 S22
-70
0 GHz 2 4 6 8 10 12 14 16 18
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0 GHz 2 4 6 8 10 12 14 16 18
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Push-On SMA Male to SMA Female Adapter PE91321
PE91321 REV 1.2 3
