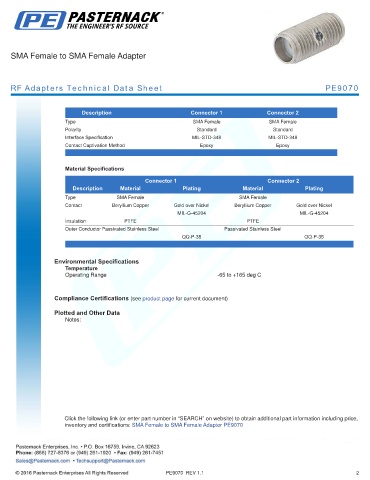

SMA Female to SMA Female Adapter
RF Adapters Technical Data Sheet PE9070
.
Description Connector 1 Connector 2
Type SMA Female SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Contact Captivation Method Epoxy Epoxy
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SMA Female
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
QQ-P-35 QQ-P-35
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMA Female Adapter PE9070
PE9070 REV 1.1 2
