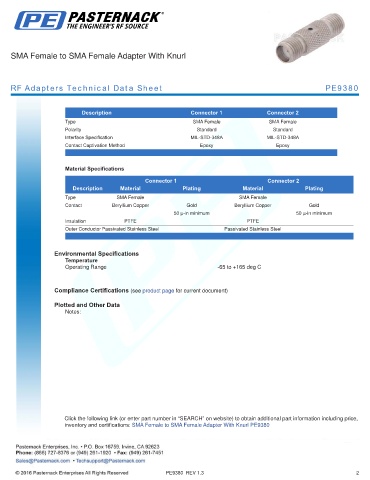

SMA Female to SMA Female Adapter With Knurl

RF Adapters Technical Data Sheet PE9380

.
Description Connector 1 Connector 2
Type SMA Female SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Contact Captivation Method Epoxy Epoxy
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
50 µ-in minimum 50 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMA Female Adapter With Knurl PE9380

PE9380 REV 1.3 2
