Precision SMA Female to SMA Female Adapter 27 Ghz

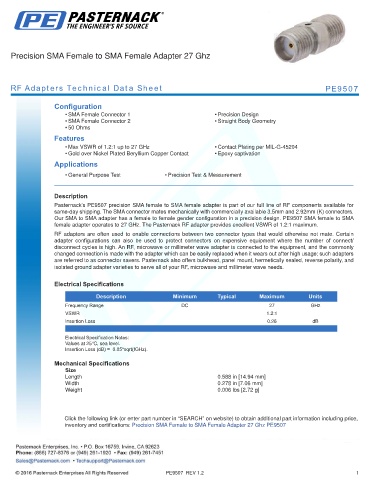

RF Adapters Technical Data Sheet PE9507

Configuration
• SMA Female Connector 1 • Precision Design
• SMA Female Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.2:1 up to 27 GHz • Contact Plating per MIL-G-45204
• Gold over Nickel Plated Beryllium Copper Contact • Epoxy captivation
Applications
• General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE9507 precision SMA female to SMA female adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to SMA adapter has a female to female gender configuration in a precision design. PE9507 SMA female to SMA
female adapter operates to 27 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 27 GHz
VSWR 1.2:1
Insertion Loss 0.26 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).

Mechanical Specifications
Size
Length 0.588 in [14.94 mm]
Width 0.278 in [7.06 mm]
Weight 0.006 lbs [2.72 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to SMA Female Adapter 27 Ghz PE9507

PE9507 REV 1.2 1
