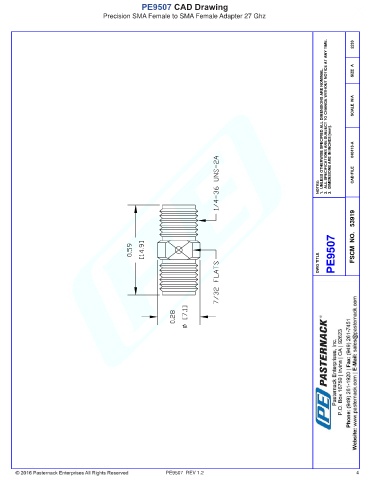

PE9507 CAD Drawing
Precision SMA Female to SMA Female Adapter 27 Ghz
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 040413-A
NOTES: CAD FILE
DWG TITLE PE9507 FSCM NO. 53919
PE9507 REV 1.2 4
