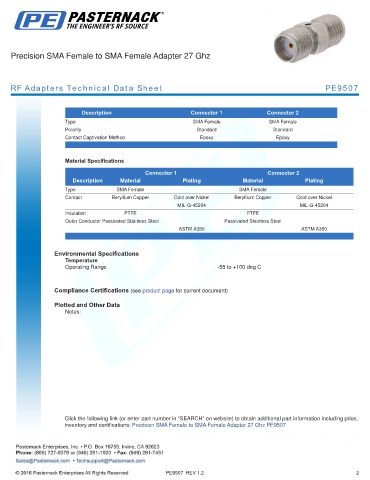

Precision SMA Female to SMA Female Adapter 27 Ghz

RF Adapters Technical Data Sheet PE9507

.
Description Connector 1 Connector 2
Type SMA Female SMA Female
Polarity Standard Standard
Contact Captivation Method Epoxy Epoxy
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SMA Female
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
ASTM A380 ASTM A380
. .

Environmental Specifications
Temperature
Operating Range -55 to +100 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to SMA Female Adapter 27 Ghz PE9507

PE9507 REV 1.2 2
