SMA Female to SMA Female Radius Right Angle Adapter

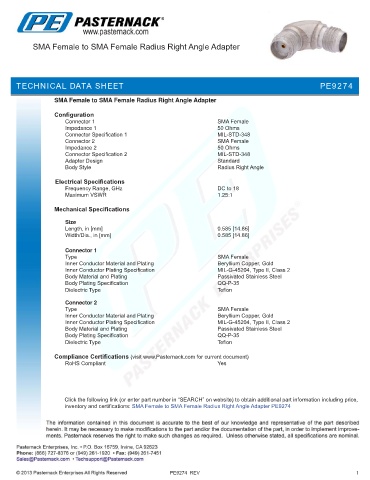

TECHNICAL DATA SHEET PE9274

SMA Female to SMA Female Radius Right Angle Adapter

Configuration
Connector 1 SMA Female
Impedance 1 50 Ohms
Connector Specification 1 MIL-STD-348
Connector 2 SMA Female
Impedance 2 50 Ohms
Connector Specification 2 MIL-STD-348
Adapter Design Standard
Body Style Radius Right Angle

Electrical Specifications
Frequency Range, GHz DC to 18
Maximum VSWR 1.25:1

Mechanical Specifications

Size
Length, in [mm] 0.585 [14.86]
Width/Dia., in [mm] 0.585 [14.86]
.
Connector 1
Type SMA Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type II, Class 2
Body Material and Plating Passivated Stainless Steel
Body Plating Specification QQ-P-35
Dielectric Type Teflon

Connector 2
Type SMA Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type II, Class 2
Body Material and Plating Passivated Stainless Steel
Body Plating Specification QQ-P-35
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMA Female Radius Right Angle Adapter PE9274

PE9274 REV 1
