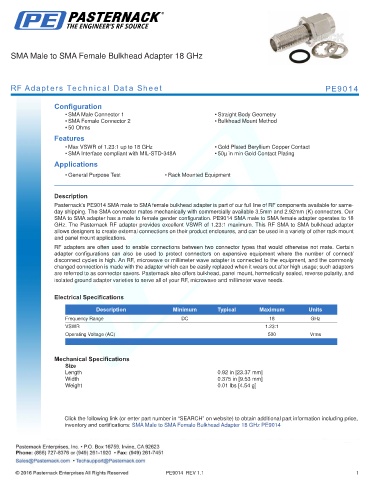

SMA Male to SMA Female Bulkhead Adapter 18 GHz

RF Adapters Technical Data Sheet PE9014

Configuration
• SMA Male Connector 1 • Straight Body Geometry
• SMA Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Max VSWR of 1.23:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348A • 50µ in min Gold Contact Plating
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9014 SMA male to SMA female bulkhead adapter is part of our full line of RF components available for same-
day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our
SMA to SMA adapter has a male to female gender configuration. PE9014 SMA male to SMA female adapter operates to 18
GHz. The Pasternack RF adapter provides excellent VSWR of 1.23:1 maximum. This RF SMA to SMA bulkhead adapter
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.23:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 0.92 in [23.37 mm]
Width 0.375 in [9.53 mm]
Weight 0.01 lbs [4.54 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Bulkhead Adapter 18 GHz PE9014

PE9014 REV 1.1 1
