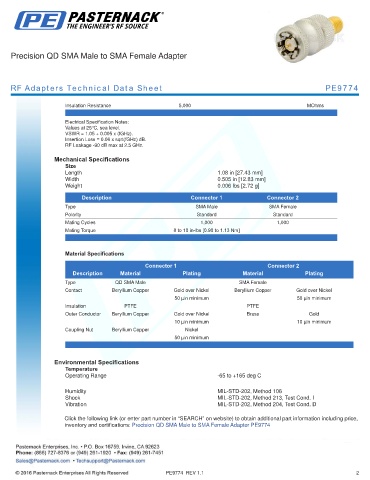

Precision QD SMA Male to SMA Female Adapter

RF Adapters Technical Data Sheet PE9774

Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.
VSWR = 1.05 + 0.005 x (fGHz).
Insertion Loss = 0.06 x sqrt(fGHz) dB.
RF Leakage -90 dB max at 2.5 GHz.

Mechanical Specifications
Size
Length 1.08 in [27.43 mm]
Width 0.505 in [12.83 mm]
Weight 0.006 lbs [2.72 g]
.
Description Connector 1 Connector 2
Type SMA Male SMA Female
Polarity Standard Standard
Mating Cycles 1,000 1,000
Mating Torque 8 to 10 in-lbs [0.90 to 1.13 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type QD SMA Male SMA Female
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
50 µin minimum 50 µin minimum
Insulation PTFE PTFE
Outer Conductor Beryllium Copper Gold over Nickel Brass Gold
10 µin minimum 10 µin minimum
Coupling Nut Beryllium Copper Nickel
50 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Test Cond. I
Vibration MIL-STD-202, Method 204, Test Cond. D

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision QD SMA Male to SMA Female Adapter PE9774

PE9774 REV 1.1 2
