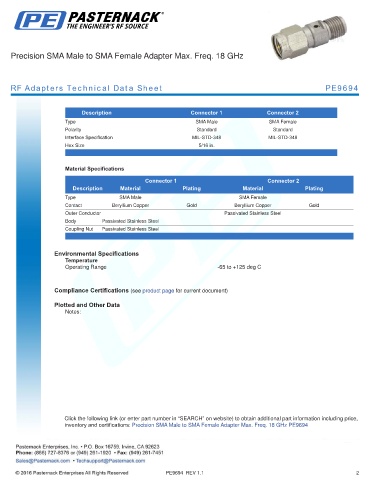

Precision SMA Male to SMA Female Adapter Max. Freq. 18 GHz

RF Adapters Technical Data Sheet PE9694

.
Description Connector 1 Connector 2
Type SMA Male SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Hex Size 5/16 in.
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to SMA Female Adapter Max. Freq. 18 GHz PE9694
