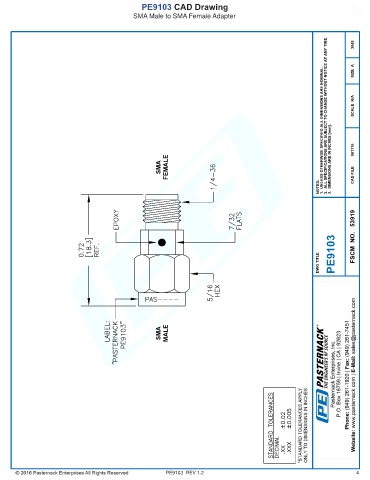

PE9103 CAD Drawing
SMA Male to SMA Female Adapter

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3045

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

SMA FEMALE 3. DIMENSIONS ARE IN INCHES [mm]. 061116 CAD FILE

NOTES:

DWG TITLE PE9103 FSCM NO. 53919

SMA MALE

*STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE9103 REV 1.2 4
