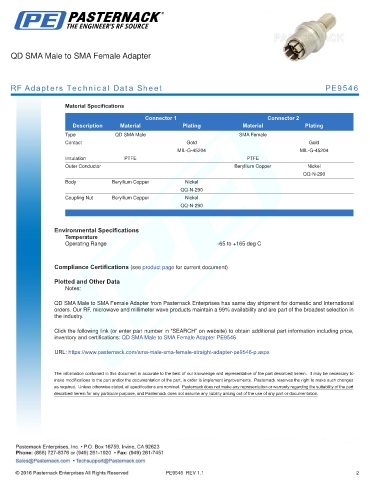

QD SMA Male to SMA Female Adapter

RF Adapters Technical Data Sheet PE9546

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type QD SMA Male SMA Female
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Beryllium Copper Nickel
QQ-N-290
Body Beryllium Copper Nickel
QQ-N-290
Coupling Nut Beryllium Copper Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

QD SMA Male to SMA Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QD SMA Male to SMA Female Adapter PE9546

URL: https://www.pasternack.com/sma-male-sma-female-straight-adapter-pe9546-p.aspx

PE9546 REV 1.1 2
