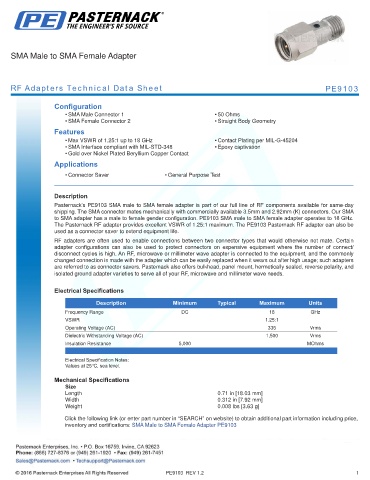

SMA Male to SMA Female Adapter

RF Adapters Technical Data Sheet PE9103

Configuration
• SMA Male Connector 1 • 50 Ohms
• SMA Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 18 GHz • Contact Plating per MIL-G-45204
• SMA Interface compliant with MIL-STD-348 • Epoxy captivation
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• Connector Saver • General Purpose Test

.
Description
Pasternack’s PE9103 SMA male to SMA female adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to SMA adapter has a male to female gender configuration. PE9103 SMA male to SMA female adapter operates to 18 GHz.
The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum. The PE9103 Pasternack RF adapter can also be
used as a connector saver to extend equipment life.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.25:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.71 in [18.03 mm]
Width 0.312 in [7.92 mm]
Weight 0.008 lbs [3.63 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Adapter PE9103

PE9103 REV 1.2 1
