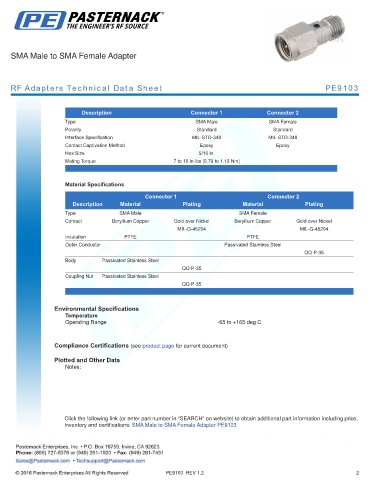

SMA Male to SMA Female Adapter

RF Adapters Technical Data Sheet PE9103

.
Description Connector 1 Connector 2
Type SMA Male SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Contact Captivation Method Epoxy Epoxy
Hex Size 5/16 in.
Mating Torque 7 to 10 in-lbs [0.79 to 1.13 Nm]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMA Female
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel
QQ-P-35
Body Passivated Stainless Steel
QQ-P-35
Coupling Nut Passivated Stainless Steel
QQ-P-35
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Adapter PE9103
