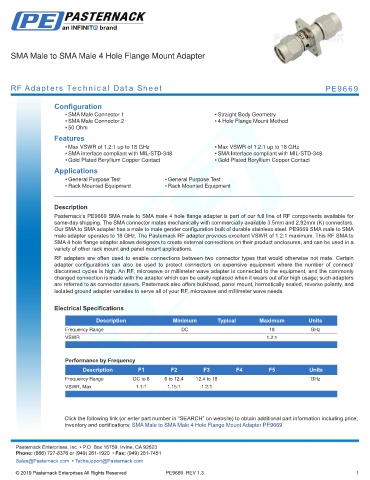

SMA Male to SMA Male 4 Hole Flange Mount Adapter

RF Adapters Technical Data Sheet PE9669

Configuration
• SMA Male Connector 1 • Straight Body Geometry
• SMA Male Connector 2 • 4 Hole Flange Mount Method
• 50 Ohm
Features
• Max VSWR of 1.2:1 up to 18 GHz • Max VSWR of 1.2:1 up to 18 GHz
• SMA interface compliant with MIL-STD-348 • SMA Interface compliant with MIL-STD-348
• Gold Plated Beryllium Copper Contact • Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • General Purpose Test
• Rack Mounted Equipment • Rack Mounted Equipment
.
Description
Pasternack’s PE9669 SMA male to SMA male 4 hole flange adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to SMA adapter has a male to male gender configuration built of durable stainless steel. PE9669 SMA male to SMA
male adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum. This RF SMA to
SMA 4 hole flange adapter allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.2:1
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 6 6 to 12.4 12.4 to 18 GHz
VSWR, Max 1.1:1 1.15:1 1.2:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male 4 Hole Flange Mount Adapter PE9669
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9669 REV 1.3 1
