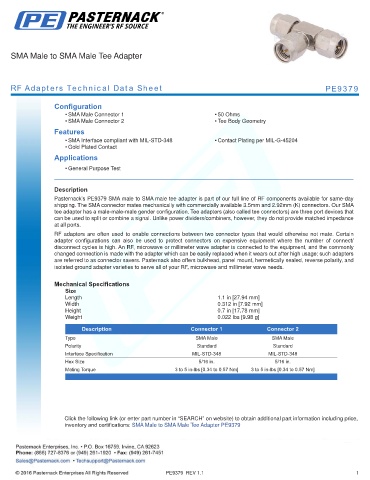

SMA Male to SMA Male Tee Adapter

RF Adapters Technical Data Sheet PE9379

Configuration
• SMA Male Connector 1 • 50 Ohms
• SMA Male Connector 2 • Tee Body Geometry
Features
• SMA Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9379 SMA male to SMA male tee adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
tee adapter has a male-male-male gender configuration. Tee adapters (also called tee connectors) are three port devices that
can be used to split or combine a signal. Unlike power dividers/combiners, however, they do not provide matched impedance
at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.1 in [27.94 mm]
Width 0.312 in [7.92 mm]
Height 0.7 in [17.78 mm]
Weight 0.022 lbs [9.98 g]
.
Description Connector 1 Connector 2
Type SMA Male SMA Male
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Hex Size 5/16 in. 5/16 in.
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm] 3 to 5 in-lbs [0.34 to 0.57 Nm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Tee Adapter PE9379
