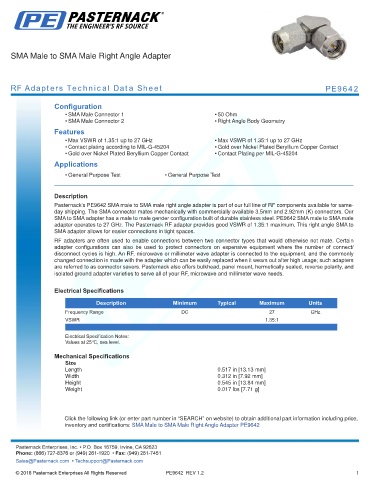

SMA Male to SMA Male Right Angle Adapter

RF Adapters Technical Data Sheet PE9642

Configuration
• SMA Male Connector 1 • 50 Ohm
• SMA Male Connector 2 • Right Angle Body Geometry
Features
• Max VSWR of 1.35:1 up to 27 GHz • Max VSWR of 1.35:1 up to 27 GHz
• Contact plating according to MIL-G-45204 • Gold over Nickel Plated Beryllium Copper Contact
• Gold over Nickel Plated Beryllium Copper Contact • Contact Plating per MIL-G-45204
Applications
• General Purpose Test • General Purpose Test

.
Description
Pasternack’s PE9642 SMA male to SMA male right angle adapter is part of our full line of RF components available for same-
day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our
SMA to SMA adapter has a male to male gender configuration built of durable stainless steel. PE9642 SMA male to SMA male
adapter operates to 27 GHz. The Pasternack RF adapter provides good VSWR of 1.35:1 maximum. This right angle SMA to
SMA adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 27 GHz
VSWR 1.35:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.517 in [13.13 mm]
Width 0.312 in [7.92 mm]
Height 0.545 in [13.84 mm]
Weight 0.017 lbs [7.71 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Right Angle Adapter PE9642
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9642 REV 1.2 1
