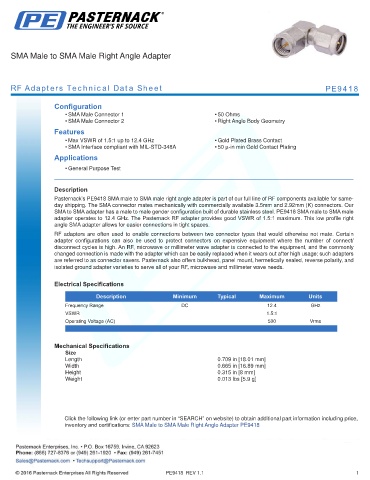

SMA Male to SMA Male Right Angle Adapter

RF Adapters Technical Data Sheet PE9418

Configuration
• SMA Male Connector 1 • 50 Ohms
• SMA Male Connector 2 • Right Angle Body Geometry
Features
• Max VSWR of 1.5:1 up to 12.4 GHz • Gold Plated Brass Contact
• SMA Interface compliant with MIL-STD-348A • 50 µ-in min Gold Contact Plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9418 SMA male to SMA male right angle adapter is part of our full line of RF components available for same-
day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our
SMA to SMA adapter has a male to male gender configuration built of durable stainless steel. PE9418 SMA male to SMA male
adapter operates to 12.4 GHz. The Pasternack RF adapter provides good VSWR of 1.5:1 maximum. This low profile right
angle SMA adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 0.709 in [18.01 mm]
Width 0.665 in [16.89 mm]
Height 0.315 in [8 mm]
Weight 0.013 lbs [5.9 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Right Angle Adapter PE9418

PE9418 REV 1.1 1
