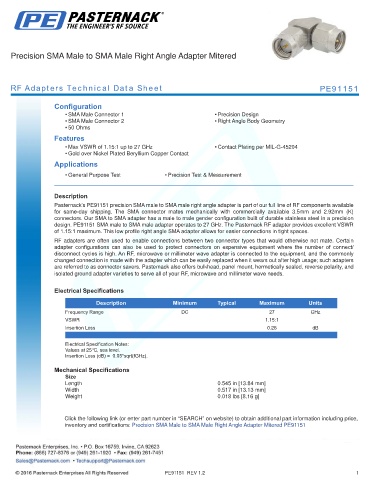

Precision SMA Male to SMA Male Right Angle Adapter Mitered

RF Adapters Technical Data Sheet PE91151

Configuration
• SMA Male Connector 1 • Precision Design
• SMA Male Connector 2 • Right Angle Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.15:1 up to 27 GHz • Contact Plating per MIL-G-45204
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE91151 precision SMA male to SMA male right angle adapter is part of our full line of RF components available
for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K)
connectors. Our SMA to SMA adapter has a male to male gender configuration built of durable stainless steel in a precision
design. PE91151 SMA male to SMA male adapter operates to 27 GHz. The Pasternack RF adapter provides excellent VSWR
of 1.15:1 maximum. This low profile right angle SMA adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 27 GHz
VSWR 1.15:1
Insertion Loss 0.26 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).

Mechanical Specifications
Size
Length 0.545 in [13.84 mm]
Width 0.517 in [13.13 mm]
Weight 0.018 lbs [8.16 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to SMA Male Right Angle Adapter Mitered PE91151

PE91151 REV 1.2 1
