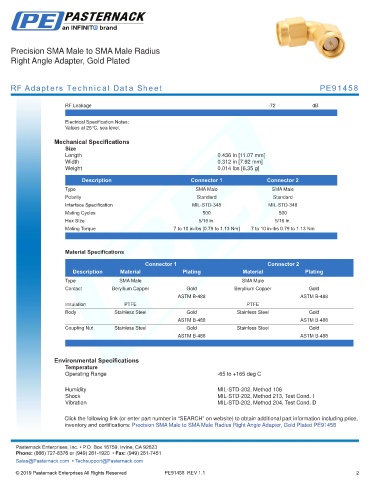

Page 1844 - RF Adapter Datasheets

Precision SMA Male to SMA Male Radius
Right Angle Adapter, Gold Plated

RF Adapters Technical Data Sheet PE91458

RF Leakage -72 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.436 in [11.07 mm]
Width 0.312 in [7.92 mm]
Weight 0.014 lbs [6.35 g]
.
Description Connector 1 Connector 2
Type SMA Male SMA Male
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Mating Cycles 500 500
Hex Size 5/16 in. 5/16 in.
Mating Torque 7 to 10 in-lbs [0.79 to 1.13 Nm] 7 to 10 in-lbs 0.79 to 1.13 Nm
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMA Male
Contact Beryllium Copper Gold Beryllium Copper Gold
ASTM B-488 ASTM B-488
Insulation PTFE PTFE
Body Stainless Steel Gold Stainless Steel Gold
ASTM B-488 ASTM B-488
Coupling Nut Stainless Steel Gold Stainless Steel Gold
ASTM B-488 ASTM B-488
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Test Cond. I
Vibration MIL-STD-202, Method 204, Test Cond. D

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to SMA Male Radius Right Angle Adapter, Gold Plated PE91458
-
