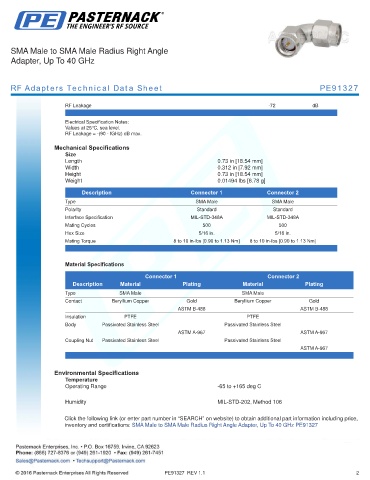

SMA Male to SMA Male Radius Right Angle
Adapter, Up To 40 GHz

RF Adapters Technical Data Sheet PE91327

RF Leakage -72 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
RF Leakage = -(90 - fGHz) dB max.

Mechanical Specifications
Size
Length 0.73 in [18.54 mm]
Width 0.312 in [7.92 mm]
Height 0.73 in [18.54 mm]
Weight 0.01494 lbs [6.78 g]
.
Description Connector 1 Connector 2
Type SMA Male SMA Male
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
Hex Size 5/16 in. 5/16 in.
Mating Torque 8 to 10 in-lbs [0.90 to 1.13 Nm] 8 to 10 in-lbs [0.90 to 1.13 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMA Male
Contact Beryllium Copper Gold Beryllium Copper Gold
ASTM B-488 ASTM B-488
Insulation PTFE PTFE
Body Passivated Stainless Steel Passivated Stainless Steel
ASTM A-967 ASTM A-967
Coupling Nut Passivated Stainless Steel Passivated Stainless Steel
ASTM A-967
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Humidity MIL-STD-202, Method 106

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Radius Right Angle Adapter, Up To 40 GHz PE91327

PE91327 REV 1.1 2
