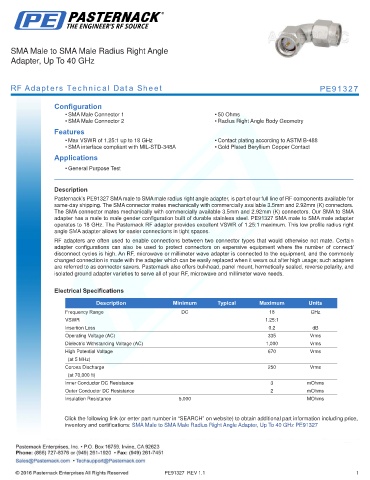

SMA Male to SMA Male Radius Right Angle
Adapter, Up To 40 GHz

RF Adapters Technical Data Sheet PE91327

Configuration
• SMA Male Connector 1 • 50 Ohms
• SMA Male Connector 2 • Radius Right Angle Body Geometry
Features
• Max VSWR of 1.25:1 up to 18 GHz • Contact plating according to ASTM B-488
• SMA interface compliant with MIL-STD-348A • Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE91327 SMA male to SMA male radius right angle adapter, is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA to SMA
adapter has a male to male gender configuration built of durable stainless steel. PE91327 SMA male to SMA male adapter
operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum. This low profile radius right
angle SMA adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.25:1
Insertion Loss 0.2 dB
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
High Potential Voltage 670 Vrms
(at 5 MHz)
Corona Discharge 250 Vrms
(at 70,000 ft)
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Radius Right Angle Adapter, Up To 40 GHz PE91327
