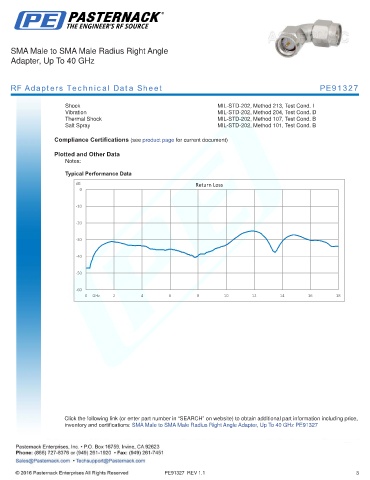

SMA Male to SMA Male Radius Right Angle
Adapter, Up To 40 GHz

RF Adapters Technical Data Sheet PE91327

Shock MIL-STD-202, Method 213, Test Cond. I
Vibration MIL-STD-202, Method 204, Test Cond. D
Thermal Shock MIL-STD-202, Method 107, Test Cond. B
Salt Spray MIL-STD-202, Method 101, Test Cond. B

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Typical Performance Data
dB Return Loss
0

-10

-20

-30

-40

-50

-60
0 GHz 2 4 6 8 10 12 14 16 18

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Radius Right Angle Adapter, Up To 40 GHz PE91327

PE91327 REV 1.1 3
