SMA Male to SMA Male Radius Right Angle Adapter

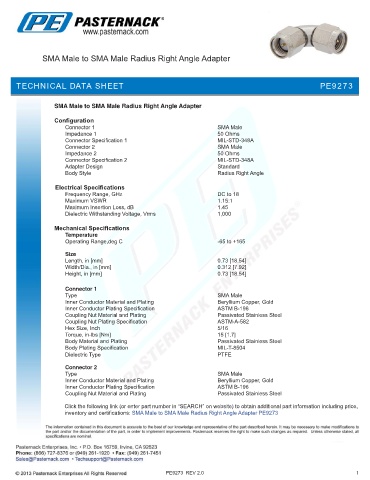

TECHNICAL DATA SHEET PE9273

SMA Male to SMA Male Radius Right Angle Adapter

Configuration
Connector 1 SMA Male
Impedance 1 50 Ohms
Connector Specification 1 MIL-STD-348A
Connector 2 SMA Male
Impedance 2 50 Ohms
Connector Specification 2 MIL-STD-348A
Adapter Design Standard
Body Style Radius Right Angle

Electrical Specifications
Frequency Range, GHz DC to 18
Maximum VSWR 1.15:1
Maximum Insertion Loss, dB 1.45
Dielectric Withstanding Voltage, Vrms 1,000

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165

Size
Length, in [mm] 0.73 [18.54]
Width/Dia., in [mm] 0.312 [7.92]
Height, in [mm] 0.73 [18.54]
.
Connector 1
Type SMA Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification ASTM B-196
Coupling Nut Material and Plating Passivated Stainless Steel
Coupling Nut Plating Specification ASTM-A-582
Hex Size, Inch 5/16
Torque, in-lbs [Nm] 15 [1.7]
Body Material and Plating Passivated Stainless Steel
Body Plating Specification MIL-T-8504
Dielectric Type PTFE

Connector 2
Type SMA Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification ASTM B-196
Coupling Nut Material and Plating Passivated Stainless Steel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Radius Right Angle Adapter PE9273

PE9273 REV 2.0 1
