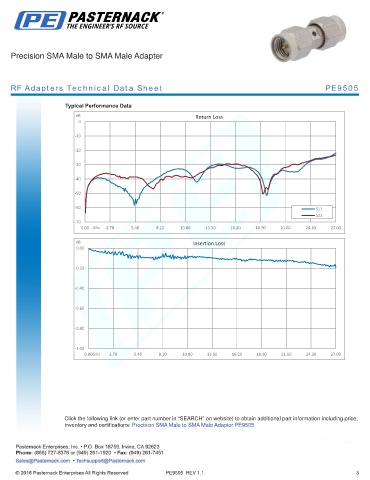

Precision SMA Male to SMA Male Adapter
RF Adapters Technical Data Sheet PE9505
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60 S11
S22
-70
0.00 GHz 2.70 5.40 8.10 10.80 13.50 16.20 18.90 21.60 24.30 27.00
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0.00GHz 2.70 5.40 8.10 10.80 13.50 16.20 18.90 21.60 24.30 27.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to SMA Male Adapter PE9505
