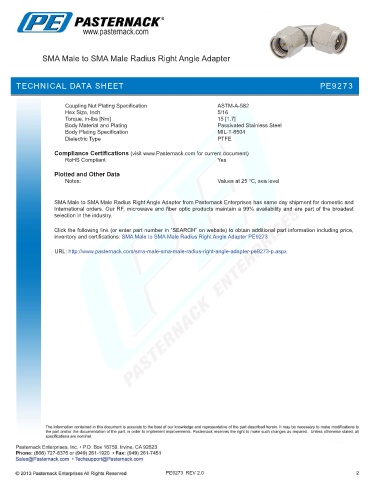

SMA Male to SMA Male Radius Right Angle Adapter

TECHNICAL DATA SHEET PE9273

Coupling Nut Plating Specification ASTM-A-582
Hex Size, Inch 5/16
Torque, in-lbs [Nm] 15 [1.7]
Body Material and Plating Passivated Stainless Steel
Body Plating Specification MIL-T-8504
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

SMA Male to SMA Male Radius Right Angle Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Radius Right Angle Adapter PE9273

URL: http://www.pasternack.com/sma-male-sma-male-radius-right-angle-adapter-pe9273-p.aspx

PE9273 REV 2.0 2
