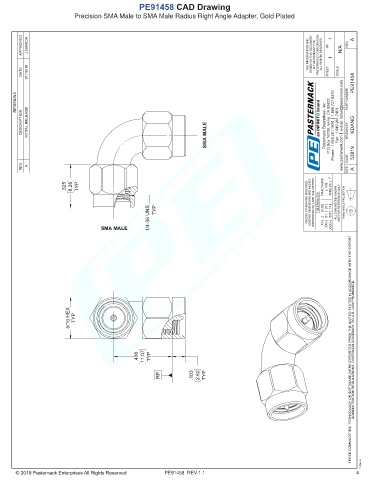

PE91458 CAD Drawing
Precision SMA Male to SMA Male Radius Right Angle Adapter, Gold Plated

APPROVED J.GARCIA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 01/10/19 SHEET OF SCALE PE91458

REVISIONS PART NUMBER

DESCRIPTION INITIAL RELEASE SMA MALE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY KDANG

REV. A CAGE SIZE 53919 A

.325 8.26 TYP UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS ± 1/32 ANGLES ± 1° ALL DIMENSIONS SHOWN

1/4-36 UNS TYP .2 [5.08] .01 [ .25 ] .005 [ .13 ] ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

SMA MALE .X=± .XX=± .XXX=±

5/16 HEX TYP

.436 11.07 TYP THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

RP .103 2.62 TYP

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.A
PE91458 REV 1.1 4
