SMA Male to SMA Male Right Angle Adapter

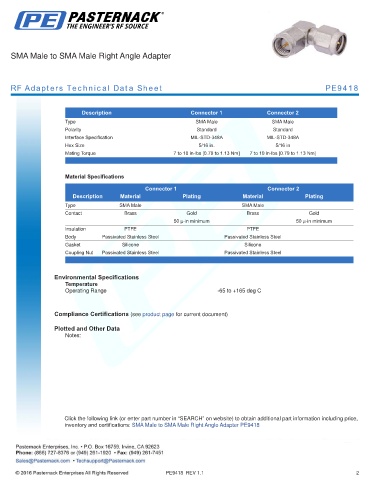

RF Adapters Technical Data Sheet PE9418

.
Description Connector 1 Connector 2
Type SMA Male SMA Male
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Hex Size 5/16 in. 5/16 in
Mating Torque 7 to 10 in-lbs [0.79 to 1.13 Nm] 7 to 10 in-lbs [0.79 to 1.13 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMA Male
Contact Brass Gold Brass Gold
50 µ-in minimum 50 µ-in minimum
Insulation PTFE PTFE
Body Passivated Stainless Steel Passivated Stainless Steel
Gasket Silicone Silicone
Coupling Nut Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Right Angle Adapter PE9418
