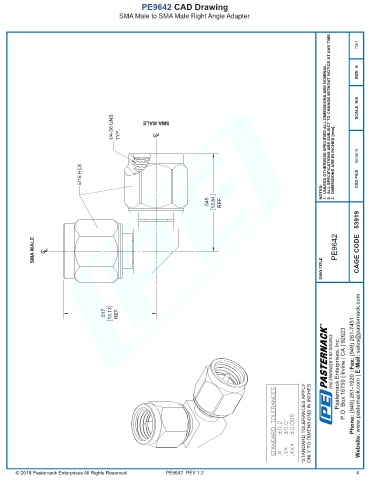

PE9642 CAD Drawing
SMA Male to SMA Male Right Angle Adapter

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
7361

SIZE A

SCALE N/A

1/4-36 UNS TYP. C L SMA MALE 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

5/16 HEX 3. DIMENSIONS ARE IN INCHES [mm]. 05/16/18 CAD FILE

NOTES:

.545 13.84 REF.

SMA MALE C L PE9642 CAGE CODE 53919

DWG TITLE

.517 13.13 REF.
Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451
R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9642 REV 1.2 4
