P. 1875

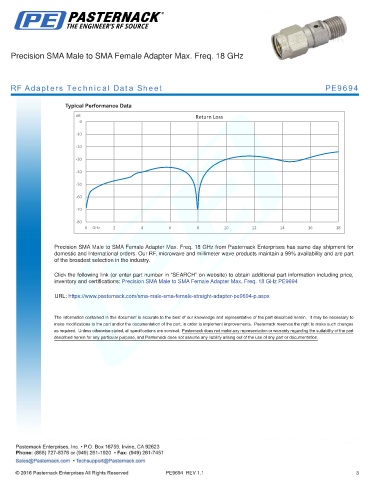

Precision SMA Male to SMA Female Adapter Max. Freq. 18 GHz
RF Adapters Technical Data Sheet PE9694
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
-70
-80
0 GHz 2 4 6 8 10 12 14 16 18
Precision SMA Male to SMA Female Adapter Max. Freq. 18 GHz from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part
of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to SMA Female Adapter Max. Freq. 18 GHz PE9694
URL: https://www.pasternack.com/sma-male-sma-female-straight-adapter-pe9694-p.aspx
PE9694 REV 1.1 3
