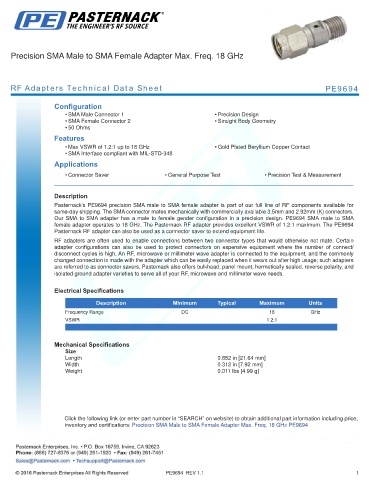

Precision SMA Male to SMA Female Adapter Max. Freq. 18 GHz

RF Adapters Technical Data Sheet PE9694

Configuration
• SMA Male Connector 1 • Precision Design
• SMA Female Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.2:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348
Applications
• Connector Saver • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE9694 precision SMA male to SMA female adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to SMA adapter has a male to female gender configuration in a precision design. PE9694 SMA male to SMA
female adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum. The PE9694
Pasternack RF adapter can also be used as a connector saver to extend equipment life.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.2:1
. .

Mechanical Specifications
Size
Length 0.852 in [21.64 mm]
Width 0.312 in [7.92 mm]
Weight 0.011 lbs [4.99 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to SMA Female Adapter Max. Freq. 18 GHz PE9694

PE9694 REV 1.1 1
