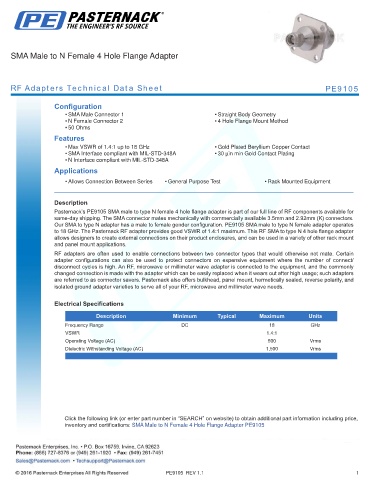

SMA Male to N Female 4 Hole Flange Adapter

RF Adapters Technical Data Sheet PE9105

Configuration
• SMA Male Connector 1 • Straight Body Geometry
• N Female Connector 2 • 4 Hole Flange Mount Method
• 50 Ohms
Features
• Max VSWR of 1.4:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348A • 30 µin min Gold Contact Plating
• N Interface compliant with MIL-STD-348A
Applications

• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment
.
Description
Pasternack’s PE9105 SMA male to type N female 4 hole flange adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to type N adapter has a male to female gender configuration. PE9105 SMA male to type N female adapter operates
to 18 GHz. The Pasternack RF adapter provides good VSWR of 1.4:1 maximum. This RF SMA to type N 4 hole flange adapter
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.4:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to N Female 4 Hole Flange Adapter PE9105

PE9105 REV 1.1 1
