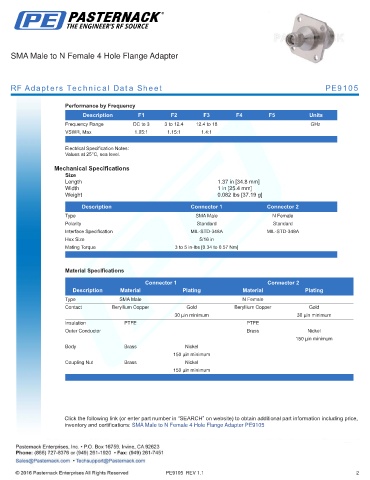

SMA Male to N Female 4 Hole Flange Adapter

RF Adapters Technical Data Sheet PE9105

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 3 to 12.4 12.4 to 18 GHz
VSWR, Max 1.05:1 1.15:1 1.4:1
.
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.37 in [34.8 mm]
Width 1 in [25.4 mm]
Weight 0.082 lbs [37.19 g]
.
Description Connector 1 Connector 2
Type SMA Male N Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Hex Size 5/16 in
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male N Female
Contact Beryllium Copper Gold Beryllium Copper Gold
30 µin minimum 30 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
150 µin minimum
Body Brass Nickel
150 µin minimum
Coupling Nut Brass Nickel
150 µin minimum
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to N Female 4 Hole Flange Adapter PE9105
