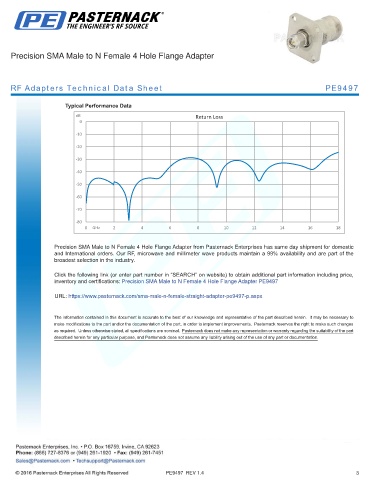

Precision SMA Male to N Female 4 Hole Flange Adapter

RF Adapters Technical Data Sheet PE9497

Typical Performance Data
dB Return Loss
0

-10

-20
-30

-40
-50

-60

-70
-80
0 GHz 2 4 6 8 10 12 14 16 18

Precision SMA Male to N Female 4 Hole Flange Adapter from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to N Female 4 Hole Flange Adapter PE9497

URL: https://www.pasternack.com/sma-male-n-female-straight-adapter-pe9497-p.aspx

PE9497 REV 1.4 3
