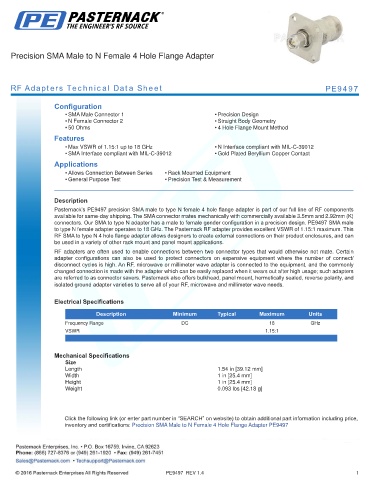

Precision SMA Male to N Female 4 Hole Flange Adapter

RF Adapters Technical Data Sheet PE9497

Configuration
• SMA Male Connector 1 • Precision Design
• N Female Connector 2 • Straight Body Geometry
• 50 Ohms • 4 Hole Flange Mount Method
Features
• Max VSWR of 1.15:1 up to 18 GHz • N Interface compliant with MIL-C-39012
• SMA Interface compliant with MIL-C-39012 • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • Rack Mounted Equipment
• General Purpose Test • Precision Test & Measurement
.
Description
Pasternack’s PE9497 precision SMA male to type N female 4 hole flange adapter is part of our full line of RF components
available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K)
connectors. Our SMA to type N adapter has a male to female gender configuration in a precision design. PE9497 SMA male
to type N female adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1 maximum. This
RF SMA to type N 4 hole flange adapter allows designers to create external connections on their product enclosures, and can
be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
. .

Mechanical Specifications
Size
Length 1.54 in [39.12 mm]
Width 1 in [25.4 mm]
Height 1 in [25.4 mm]
Weight 0.093 lbs [42.18 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to N Female 4 Hole Flange Adapter PE9497

PE9497 REV 1.4 1
