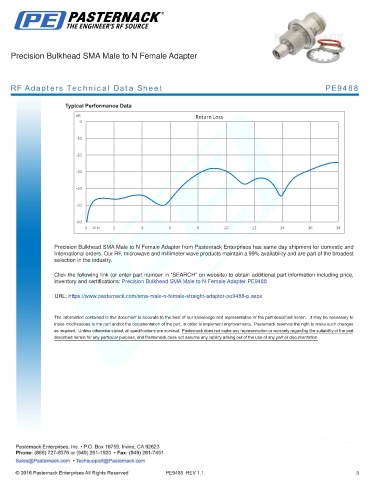

Precision Bulkhead SMA Male to N Female Adapter

RF Adapters Technical Data Sheet PE9488

Typical Performance Data
dB Return Loss
0

-10

-20

-30

-40

-50

-60
0 GHz 2 4 6 8 10 12 14 16 18

Precision Bulkhead SMA Male to N Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision Bulkhead SMA Male to N Female Adapter PE9488

URL: https://www.pasternack.com/sma-male-n-female-straight-adapter-pe9488-p.aspx

PE9488 REV 1.1 3
