SMA Male to QMA Female Adapter

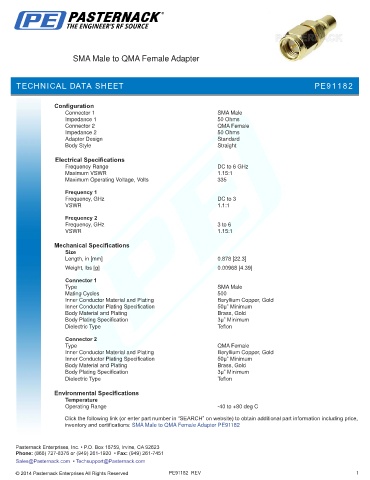

TECHNICAL DATA SHEET PE91182

Configuration
Connector 1 SMA Male
Impedance 1 50 Ohms
Connector 2 QMA Female
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.15:1
Maximum Operating Voltage, Volts 335

Frequency 1
Frequency, GHz DC to 3
VSWR 1.1:1
Frequency 2
Frequency, GHz 3 to 6
VSWR 1.15:1

Mechanical Specifications
Size
Length, in [mm] 0.878 [22.3]
.
Weight, lbs [g] 0.00968 [4.39]
Connector 1
Type SMA Male
Mating Cycles 500
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification 50µ” Minimum
Body Material and Plating Brass, Gold
Body Plating Specification 3µ” Minimum
Dielectric Type Teflon
Connector 2
Type QMA Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification 50µ” Minimum
Body Material and Plating Brass, Gold
Body Plating Specification 3µ” Minimum
Dielectric Type Teflon

Environmental Specifications
Temperature
Operating Range -40 to +80 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to QMA Female Adapter PE91182

PE91182 REV 1
