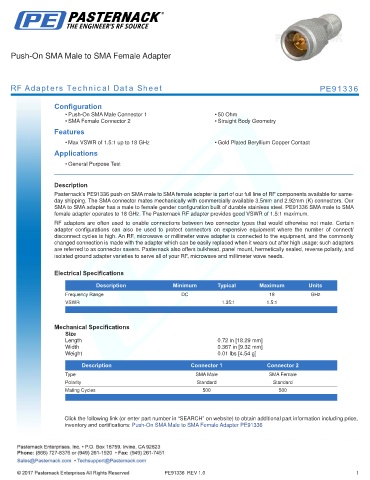

Push-On SMA Male to SMA Female Adapter

RF Adapters Technical Data Sheet PE91336

Configuration
• Push-On SMA Male Connector 1 • 50 Ohm
• SMA Female Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.5:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE91336 push-on SMA male to SMA female adapter is part of our full line of RF components available for same-
day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our
SMA to SMA adapter has a male to female gender configuration built of durable stainless steel. PE91336 SMA male to SMA
female adapter operates to 18 GHz. The Pasternack RF adapter provides good VSWR of 1.5:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.35:1 1.5:1
. .

Mechanical Specifications
Size
Length 0.72 in [18.29 mm]
Width 0.367 in [9.32 mm]
Weight 0.01 lbs [4.54 g]
.
Description Connector 1 Connector 2
Type SMA Male SMA Female
Polarity Standard Standard
Mating Cycles 500 500
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Push-On SMA Male to SMA Female Adapter PE91336

PE91336 REV 1.0 1
