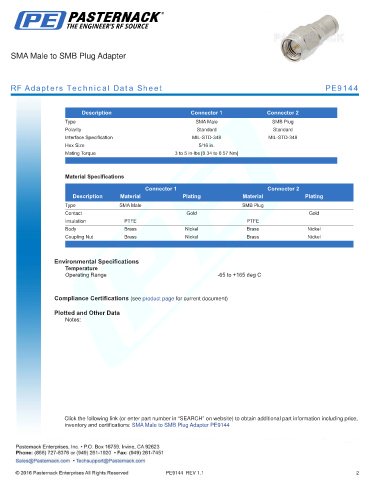

SMA Male to SMB Plug Adapter

RF Adapters Technical Data Sheet PE9144

.
Description Connector 1 Connector 2
Type SMA Male SMB Plug
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Hex Size 5/16 in.
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMB Plug
Contact Gold Gold
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
Coupling Nut Brass Nickel Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMB Plug Adapter PE9144
