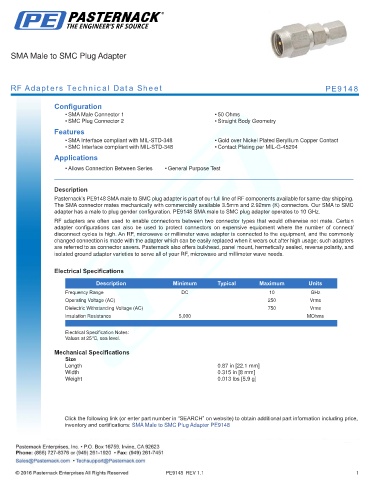

SMA Male to SMC Plug Adapter

RF Adapters Technical Data Sheet PE9148

Configuration
• SMA Male Connector 1 • 50 Ohms
• SMC Plug Connector 2 • Straight Body Geometry
Features
• SMA Interface compliant with MIL-STD-348 • Gold over Nickel Plated Beryllium Copper Contact
• SMC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9148 SMA male to SMC plug adapter is part of our full line of RF components available for same-day shipping.
The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA to SMC
adapter has a male to plug gender configuration. PE9148 SMA male to SMC plug adapter operates to 10 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 10 GHz
Operating Voltage (AC) 250 Vrms
Dielectric Withstanding Voltage (AC) 750 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.87 in [22.1 mm]
Width 0.315 in [8 mm]
Weight 0.013 lbs [5.9 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMC Plug Adapter PE9148

PE9148 REV 1.1 1
