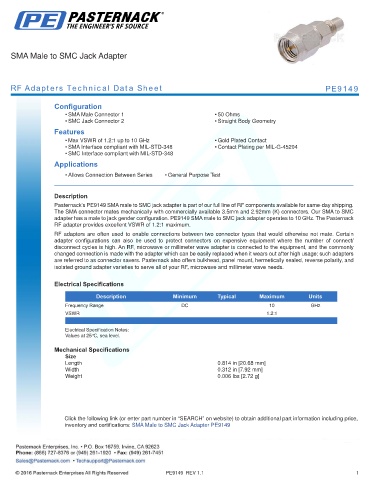

SMA Male to SMC Jack Adapter

RF Adapters Technical Data Sheet PE9149

Configuration
• SMA Male Connector 1 • 50 Ohms
• SMC Jack Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.2:1 up to 10 GHz • Gold Plated Contact
• SMA Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• SMC Interface compliant with MIL-STD-348
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9149 SMA male to SMC jack adapter is part of our full line of RF components available for same-day shipping.
The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA to SMC
adapter has a male to jack gender configuration. PE9149 SMA male to SMC jack adapter operates to 10 GHz. The Pasternack
RF adapter provides excellent VSWR of 1.2:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 10 GHz
VSWR 1.2:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.814 in [20.68 mm]
Width 0.312 in [7.92 mm]
Weight 0.006 lbs [2.72 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMC Jack Adapter PE9149

PE9149 REV 1.1 1
