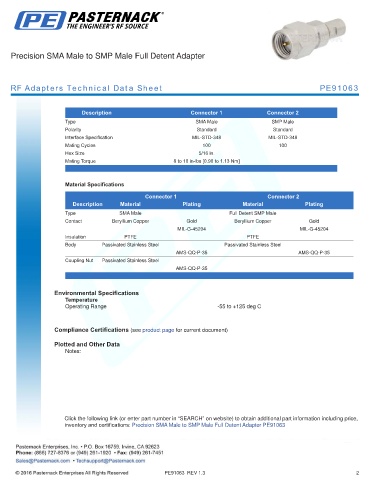

Precision SMA Male to SMP Male Full Detent Adapter

RF Adapters Technical Data Sheet PE91063

.
Description Connector 1 Connector 2
Type SMA Male SMP Male
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Mating Cycles 100 100
Hex Size 5/16 in.
Mating Torque 8 to 10 in-lbs [0.90 to 1.13 Nm]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male Full Detent SMP Male
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Body Passivated Stainless Steel Passivated Stainless Steel
AMS-QQ-P-35 AMS-QQ-P-35
Coupling Nut Passivated Stainless Steel
AMS-QQ-P-35
. .

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to SMP Male Full Detent Adapter PE91063

PE91063 REV 1.3 2
